DETUNING SYSTEM
LOW VOLTAGE POWER CAPACITORS (LVAC)
Shunt power capacitors of the self-healing type for a.c. systems having a rated voltage up to and including 1000 V
EN 60831, Part 1+2 (European)
IEC 60831, Part 1+2 (International)
Voltage Range : 230 – 1000 VACrms
Approvals : BIS, UL

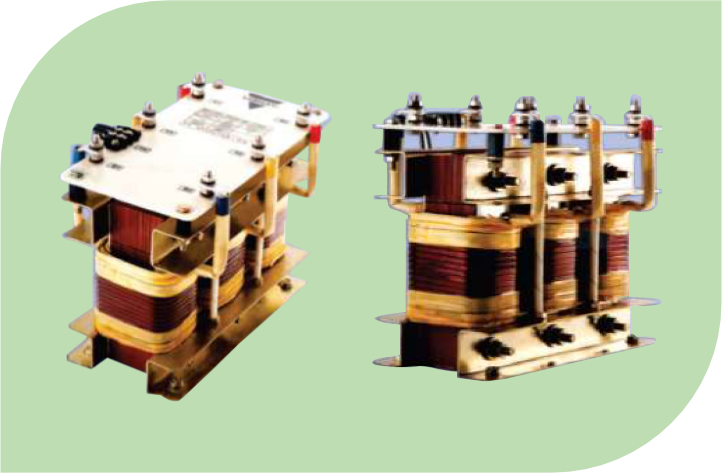

SERIES REACTORS
KEY BENIFITS
Avoidance of Resonance Conditions
Detuned & Tuned harmonic Filters
FEATURES
High Harmonic Loading capability
High Linearity
Low Lossesv
RANGE
7% / 14% Detuned Factor
Voltage : 440 Volts at 50Hz
TECHNOLOGY
Standard : IEC 60289, IS:5553
Connection: Series with Capacitor
Winding: Aluminium / Copper
THYRISTOR SWITCH MODULE
FEATURES
Switching without Inrush Current,smooth disconnecting
Recovery Time 20ms
Triggering Voltage 8-30V DC
RANGE
15kVAr, 25kVAr, 50kVAr, 75kVAr, 100kVAr
Voltage:400v / 440V / 480V
TECHNOLOGY
Standard: IEC EN 50178
Connection: Series with Capacitor
Protection: Thermal Cutoff
